U Purlin Roll Forming Machine

Description:
With U shaped mold section, U purlin roll forming machine produces purlins mainly for mine roadway supporting, mountain tunnel supporting, etc. The purlins possess good features of great pressure bearing, long time supporting, easy installation and high deformation resistance.

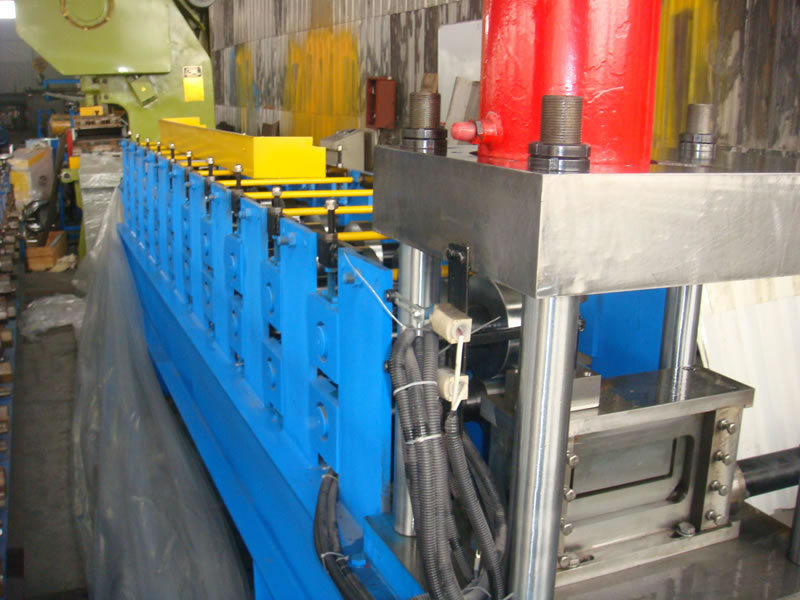

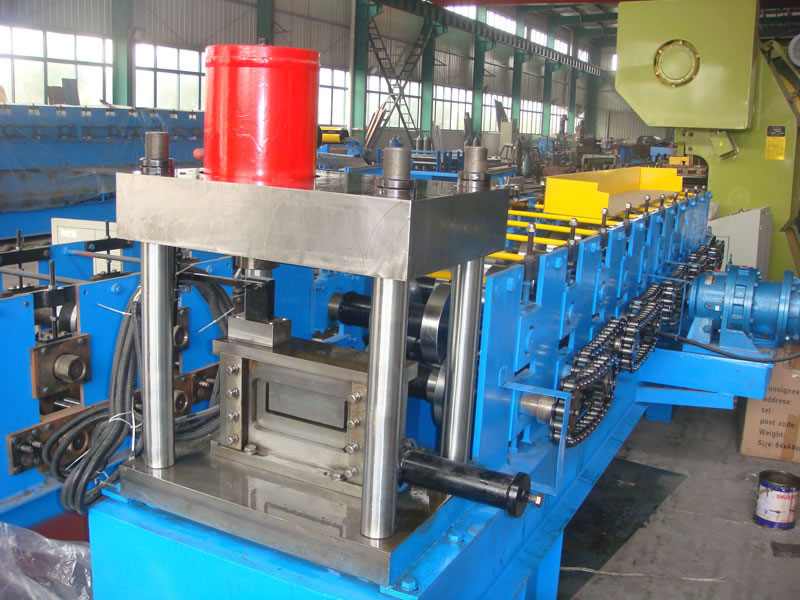

U shape forming machine is mainly constituted of manual uncoiler, roll forming machine, computer control system, hydraulic control system and molding cutter. The machine performs very well and can be debugged with little noise.

Operation and Maintenance:
1. U purlin roll forming machine, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of U shape forming machine should be conducted carefully. And the forming rollers should be kept clean.
Packaging and Transportation:
We deliver U purlin roll forming machines by sea shipping in container and nude packing.
As an ISO 9001:2000 Quality Control System certified company, Jiangyin Dingbo Technology Co., Ltd. has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides U purlin roll forming machine, we also professionally output C/Z purlin roll forming machine, C-Z quick change forming machine and W purlin roll forming machine. Our U shape forming machines can be provided to customers around the world, including India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
