Description:

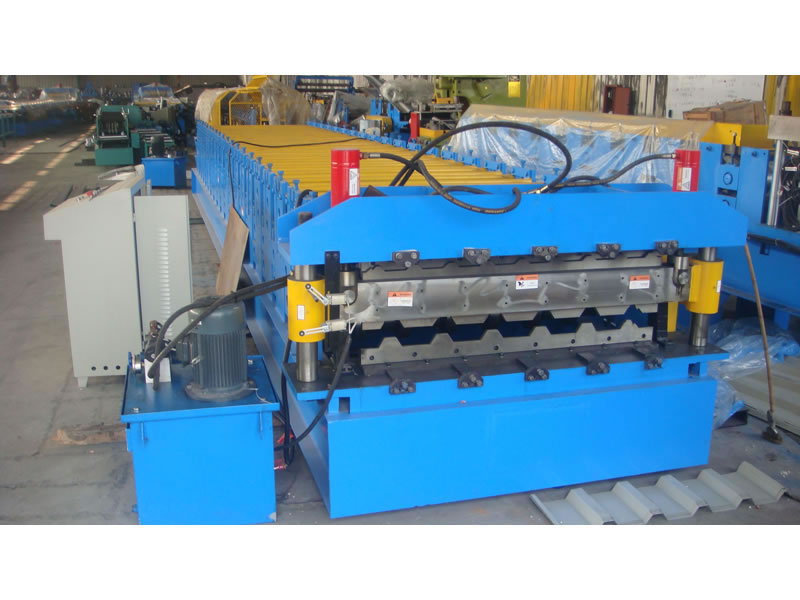

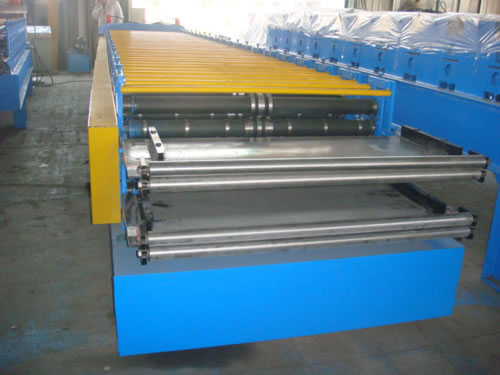

Double layer roll forming machine (namely double layer rolling machine), with two independent forming molds, is suitable for producing colored steel plate and roof panel. Automatically regulated with PLC computer, double layer roll forming machine could greatly save cost and space. Thus it has good production competitiveness.
The double layer roll forming machine is mainly consisted of manual uncoiler, roll forming machine, computer control system, hydraulic control system and press forming cutting machine.
Operation and Maintenance:
1.With high performance in operation, double layer roll forming machine has little noise;
2.Double layer roller former, totally controlled by PLC, is fairly easy to operate. What the user only needs to do is inputting related production data, such as the number of products, length and punching dimension, etc;
3.If users want to adjust the machine or something else, they have to firstly stop the machine before carrying out relevant operations;
4.Regular lubrication for chain wheel, bearing and speed reducer of double layer rolling machine should be conducted carefully. And the forming rollers should be kept clean.
Parameters of Double Layer Roll Forming Machine:
|
Suitable to process
|
Colored steel plate, galvanized board
|
|
Width of the plate
|
1000mm
|
|
Rollers
|
20groups
|
|
Rolling material
|
Forging steel 45#
|
|
Rolling galvanization thickness
|
0.3-0.5mm
|
|
Material of the cutting blade
|
Cr12mov
|
|
Dimensions
|
Approx 9.5m×1.8m×1.8m
|
|
Power
|
5.5kw
|
|
Thickness of the plate
|
0.3-0.5mm
|
|
productivity
|
10m-15m/min
|
|
Diameter of the roller
|
76mm
|
|
Weight
|
About 10T
|
|
Voltage
|
380V, 50Hz
|
|
Processing precision
|
Within 1.00mm
|
Packaging and Transportation:
We deliver double layer roll forming machines by sea shipping in container and nude packing.
Jiangyin Dingbo Technology Co., Ltd. is a professional manufacturer and supplier of double layer roll forming machines in China. With 500,000 RMB registered capital and rich experience in steel structure industry, our company also supplies trapezoid roll forming machine, corrugated roll forming machine and IBR roll forming machine. Our double layer rolling machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
